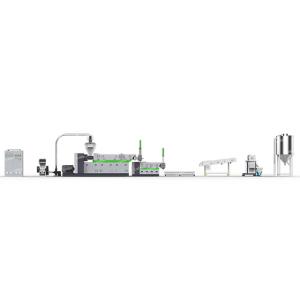

Plastic PP/PE waste clean dry soft film Granulator Machine is designed for the pellet and re-pellet production obtained from plastic, especially forcused on PP/PE film granulation.
The granules that the LVDAO particle cutting machine produce are uniform and beautiful.
Advantages:
1) noodle water-cooling cutting , ensures good shape.
2) fhaving filtrations. ensuring the purity of final pellets
3) Extrude more evenly, having more stable output and better pellets
4) CE, IAF, SGS, IOS9001:2008 Certificate
5) Long service life
6) Customized
7) Engineers available overseas
Parameter table:
| Model | Screw dia.(mm) | long dia.ratio | output(kg/h) | screw rotate speed(r/min) | power(kw) |
| LDA-SJP-90 | 90 | 25:1 | 80-100 | 10-70 | 22-30 |
| LDA-SJP-100 | 100 | 25:1 | 100-120 | 10-70 | 30 |
| LDA-SJP-120 | 120 | 25:1 | 130-150 | 10-70 | 37-45 |
| LDA-SJP-130 | 130 | 25:1 | 150-170 | 10-70 | 45-55 |
| LDA-SJP-140 | 140 | 25:1 | 180-220 | 10-70 | 55-75 |
| LDA-SJP-150 | 150 | 25:1 | 240-300 | 10-70 | 75 |
Specifications
| Feeding | Bowler conveyor |
| Extruder | Single screw, stage extrusion |
| Cutting Type | Strand (noodle) type pelletizing |
| Cooling Type | Water cooled |
| Product | Plastic pellets/granules |
| Material Type | PP/PE Film |
| Material Shape | waste clean soft film |
| Machine Components | Cabinet,extruder,water cooling tank,blower,cutter,silo |
| Output range | 80kg~ 300 kg/hr |
| Screw Diameter | 90~150mm (customized) |
| Screw L/D | 25:1 (customized) |
| Screw Material | 38CrMnAl |
| Voltage | Customized based on request (For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz...) |
| Delivery Time | 40days for customized machine. |
| Warranty | 1 year |
| Technical Assistance | Engineers available to service machinery overseas
|
FAQ
Q:Are you machinery factory or trading company?
A:We are machinery factory with 20 years experience in Ningbo. And we can export machines by ourselves.
Q: Which kind of machine do you make?
A: We mainly produce plastic recycling machine,pelletizing machine and other auxiliary machine , according to the different raw material, different output and different industrial voltage in working place,you can choose different machines.
Q: How can we visit your company and machines?
A: Our factory is located in Ningbo City,near Shanghai and Hangzhou. About 3 hours away from Shanghai International Airport.
Q:Can you customized machine?
We can make the products following the customers' requirement,like the shape,size,color,logo and other spec details.
WHY CHOOSE US
1.Since 1997, professional manufacturer of plastic recycling machinie and pelletizing machine ;
2.300 pcs quantity of recycling machine in one year.
3.Promise:We will provide technical support for all lifetime with over 20 years experiences.
More details, please contact us now! Your email address will not be published.
Features:
LDA series is used for PP/PE film recycling and pelletizing,especially for sorting materials and transform rubbish into treasure. It is an ideal choice for environmental protecting of the supermarket and residential areas. This machine line adopt the fast compact ,fast melting, extruding with filter and one-step processing makes the plastic granules.
