140*140 Plastic Screen Changer Dia cube 0.3 filter area ISO9001,CE Industrial
Production descriptions :
1) The electrical screen changer is driven by a motor,to move the screen packs in and out of thr melt flow,These kinds of units can be defined as semi-continuous because they allow screen changing without stopping the line.
2) The advantages to this type of unit are relatively low cost, straight-through, low-pressure-loss design, and screen changing without stopping the line.
Features:
We design and manufacture production of various sizes according to the customers' requirement.
One screen cavity on each slide plate instead two screen cavities on one slide plate.
Continuous type" means operation of screen change without machine halt or disruption of melt flow.
Specifications:
| Model | Filter area | Screw dia | Hole number | Die cube |
| LD-MD-01 | 140×140 | 65 | 10 | 0.3 |
| LD-MD-02 | 160×160 | 80 | 14 | 0.35 |
| LD-MD-03 | 180×180 | 90 | 16 | 0.4 |
| LD-MD-04 | 200×200 | 100 | 20 | 0,45 |
| LD-MD-05 | 220×220 | 120 | 22 | 0.5 |
| LD-MD-06 | 240×240 | 130 | 26 | 0.55 |
| LD-MD-07 | 250×250 | 140 | 28 | 0.6 |
| LD-MD-08 | 300×300 | 150 | 30 | 0.65 |
| LD-MD-09 | 330×330 | 160 | 32 | 0.7 |
| LD-MD-10 | 350×350 | 180 | 34 | 0.75 |

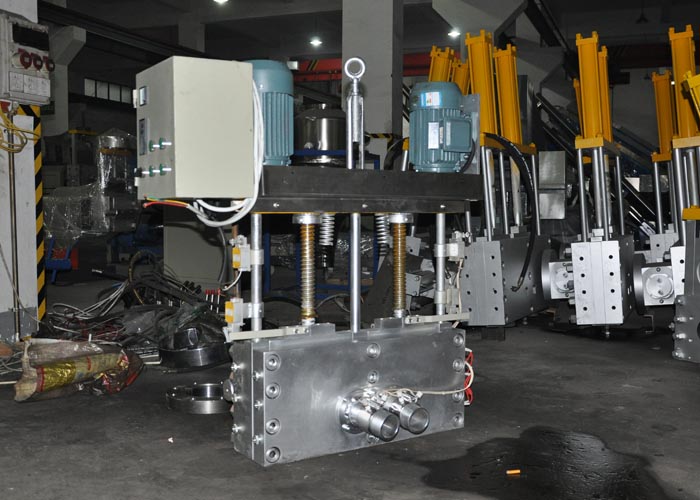

Detail images:
Packaging & Delivery:
1. We can provide custom-made packaging.
2. Prompt deliver at the very day.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
5. Sophisticated and professional logistic agent.
Competitive advantages:
1. Since 1992, professional manufacturer of plastic recycling machinie and pelletizing machine ;
2. The biggest manufacturer of plastic pelletizing machine in zhejiang province .
3. 3000 pcs quatity of pelletizer in one year .300 pcs quantity of recycling machine in one year.
4. Promise:We will provide technical support for all lifetime with over 20 years experiences.
